Slide Sleeve (SLS) Top Loading Arm

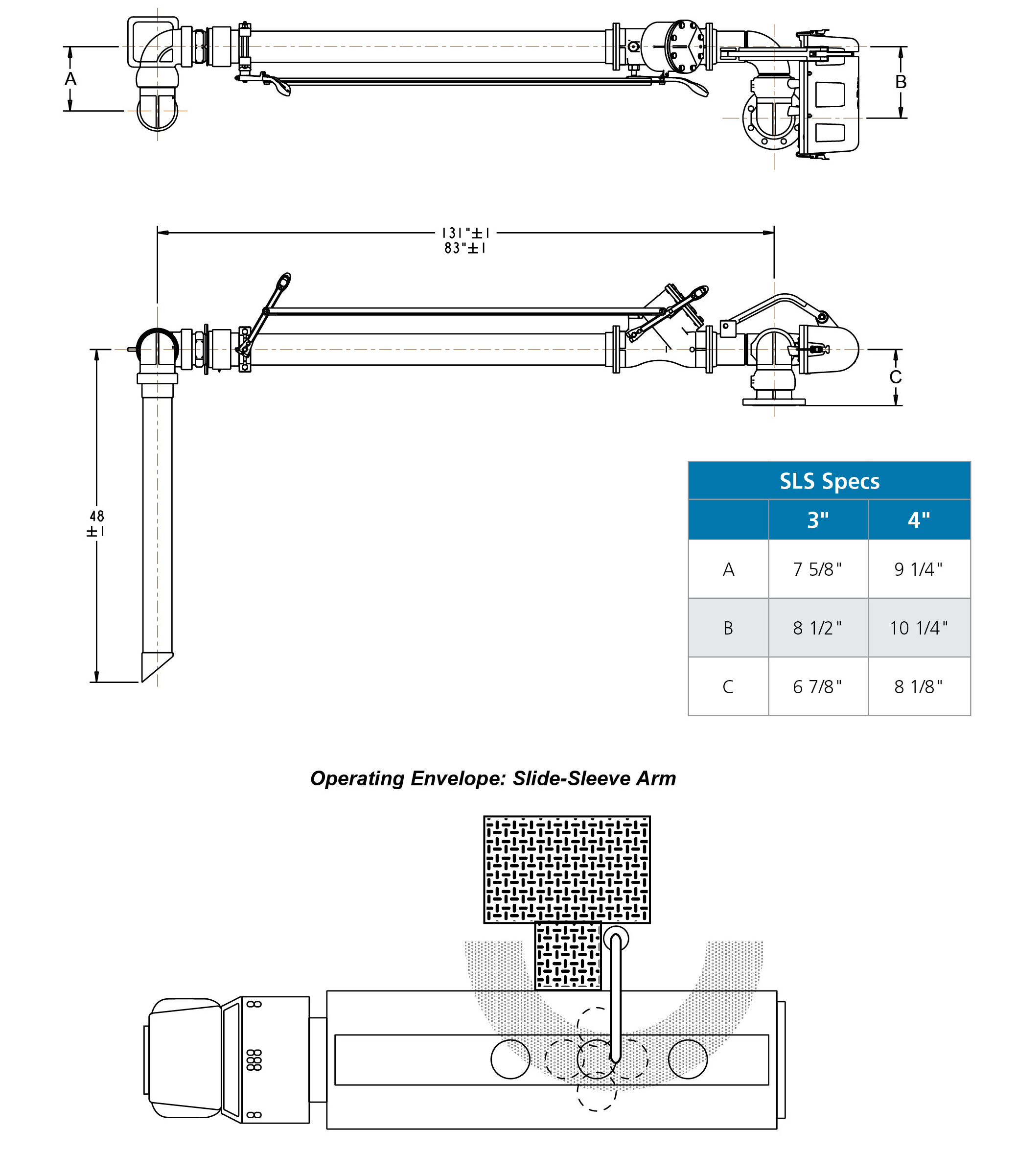

The Slide Sleeve loading arm incorporates a slide-sleeve assembly that telescopes in and out to adjust for variations in the distance from the loading rack to the tank truck. It is used primarily in small bulk plants and terminals for top loading fuel oil or other petroleum products. This cost-effective loading arm is time-tested as a practical method of locating the drop tube accurately and easily. The slide sleeve is a medium-duty unit designed for flow rates up to 15 ft/sec (4.5m/sec.). Higher flow rates may tend to push the inner tube out beyond the loading point.
The New StandardLine
StandardLine Loading Arms by OPW Engineered Systems raise the bar in quality and performance for the industry. Get OPW's best-in-class loading systems in pre-engineered sizes, materials and feed orientations with delivery in 20 days or less. All StandardLine Loading Arms feature:
- Fast Delivery - 20 days or less!†
- Menu of Options to Customize Your Arm
- Included Freight in the Continental US and Canada
- Exclusive 3-Year Warranty
†’20 Days or Less’ refers to 20 working days
